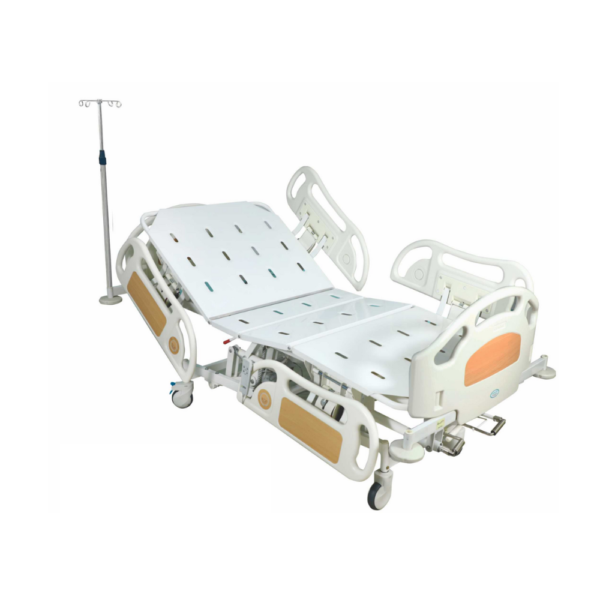

Features and Benefit

• Mattress area divided into 4 sections made up of CRCA Sheet.
• Detachable Polymer Molded head and foot bows provide a soothing look.
• Provided with four sectional polymer molded safety side rails with angle indicators.
• Major Features include: Backrest, Knee rest, Trendelenburg / Reverse Trendelenburg, Height Adjustment, Cardiac Chair Position, Zero Level Position maneuverable by four separate linear actuators which are operated through integrated panels on Foot Boards and Upperside railings.
• Auto Regression on the backrest 10 cm for less stress on pelvic area.
• Dual Side Lever for Manual CPR.

Overall Dimension (when fully extended):

• Overall Dimensions : 2160 mm L X 1020 mm W
• Frame Size : 2060 mm L X 900 mm W
• Back rest tilt : 0-75 degree
• Knee rest tilt : 0-35 degree
• Trendelenburg/ Reverse Trendelenburg : 0-12 degre

Optional

• Mattress (Size 1930 mm X 900 mm X 100 mm)
